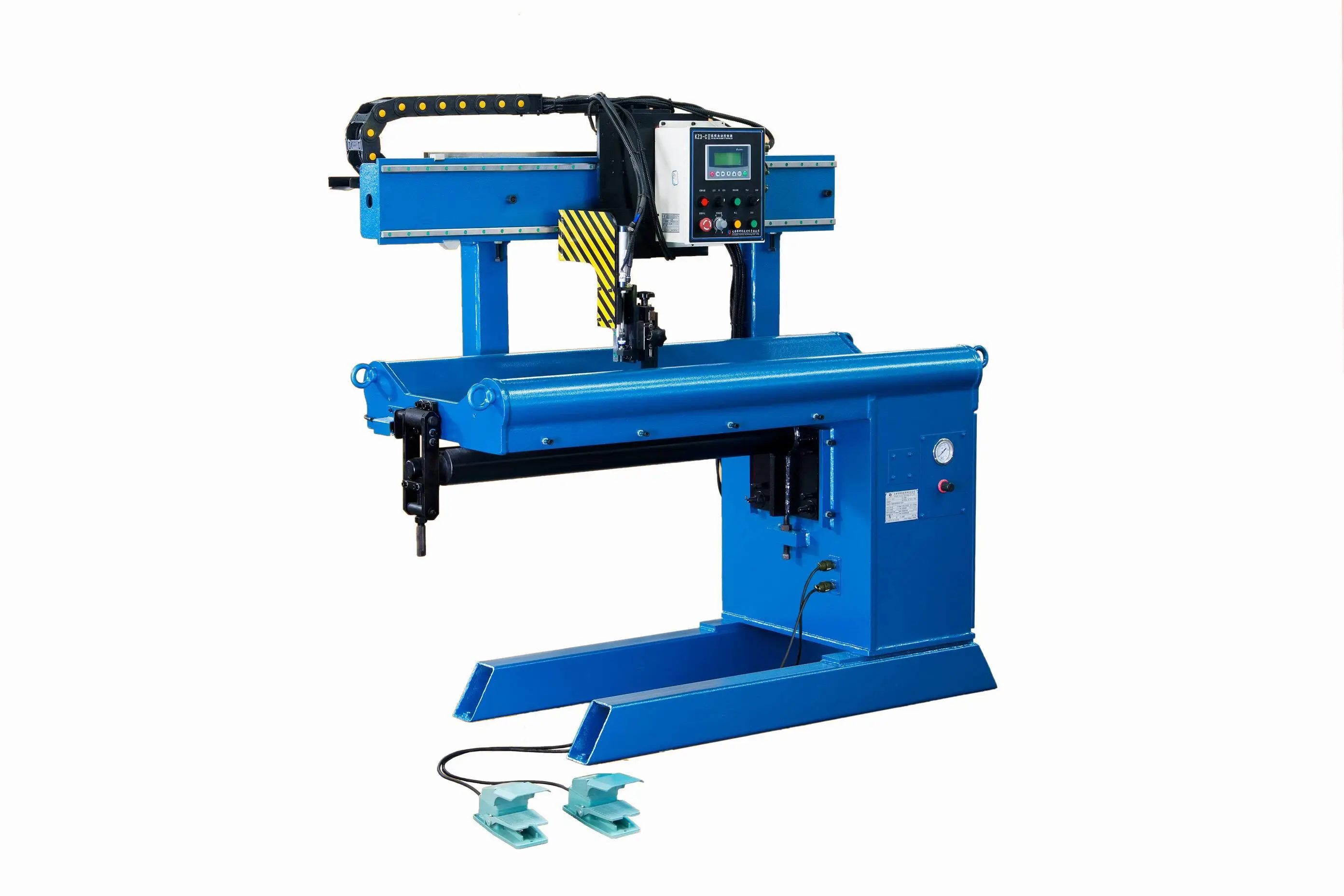

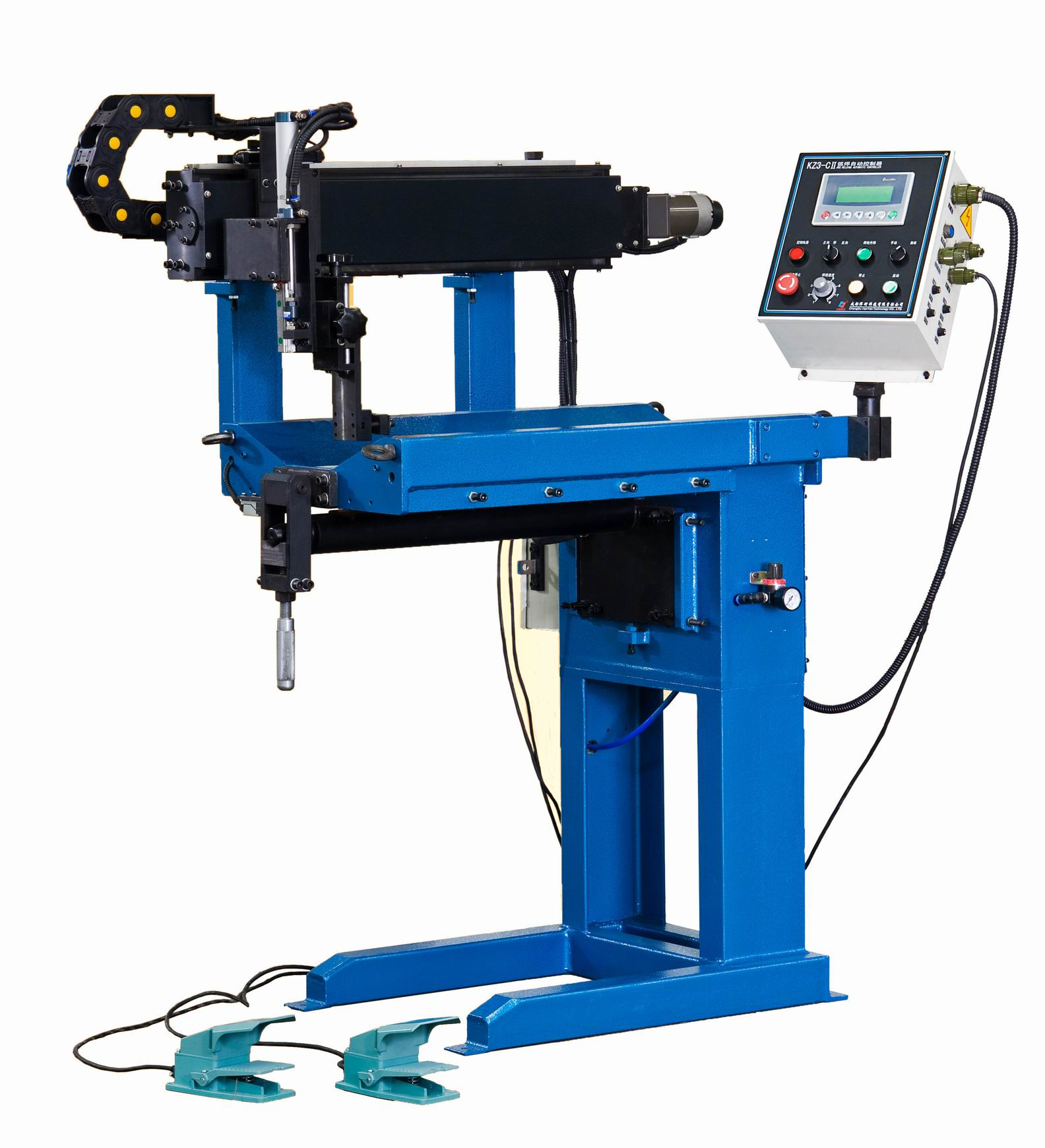

Longitudinal Seam Welder

The welding workpiece thickness of this series of equipment ranges from 0.5mm to 8mm, and the applicable workpiece inner diameter (minimum diameter) varies according to specific models, ranging from Φ75mm to Φ270mm, with a maximum inner diameter of Φ850mm (expandable with standard heightening block accessories), and different models accurately match the welding needs of different specifications of workpieces.

he equipment has a variety of optional accessories, which can be flexibly selected according to actual production needs, including: 1. Loading and unloading trolley (manual, pneumatic or electric adjustment) for fast handling and positioning of workpieces; 2. Centering mechanism (manual or pneumatic) to improve workpiece assembly accuracy and ensure welding quality; 3. Automatic wire feeding mechanism, suitable for TIG and plasma welding processes, to improve welding efficiency and weld forming effect; 4. Arc length automatic tracking system to accurately track the weld position and reduce manual adjustment errors; 5. TV monitoring system to real-time monitor the welding process for timely parameter adjustment; 6. Customizable bed heightening blocks to further expand the range of workpiece welding inner diameter; 7. Different types of welding power sources (TIG, MIG, MAG, submerged arc welding) to meet the needs of various welding processes.
